iroha::ametsuchi::Storage Class Reference

#include "storage.hpp"

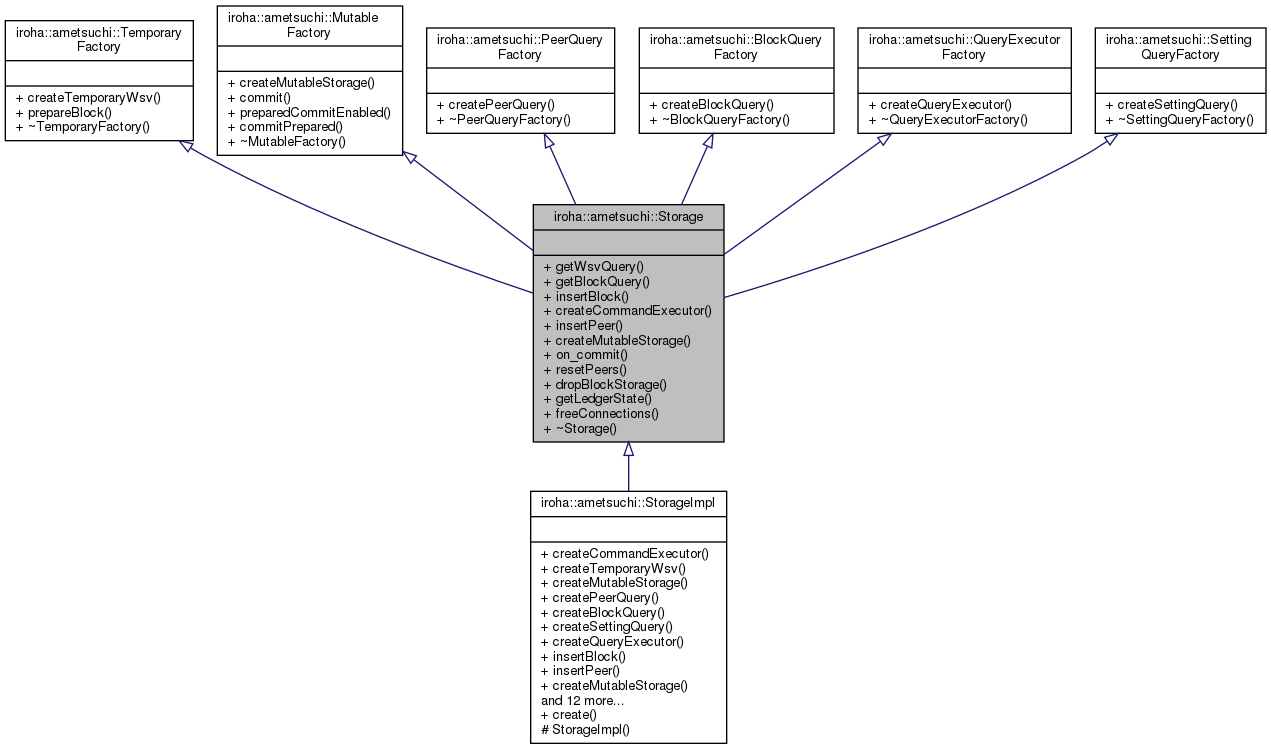

Inheritance diagram for iroha::ametsuchi::Storage:

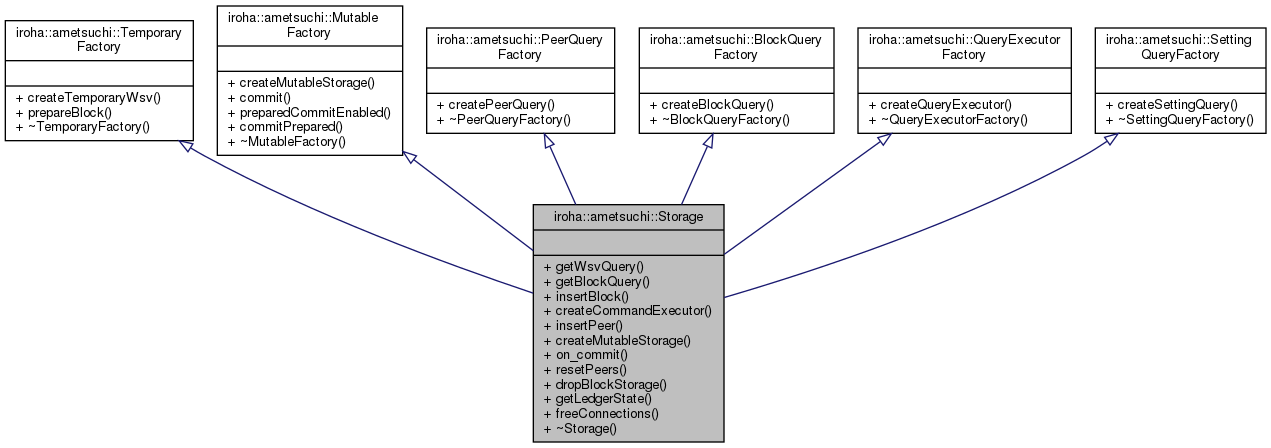

Collaboration diagram for iroha::ametsuchi::Storage:

Public Member Functions
virtual std::shared_ptr< WsvQuery >	getWsvQuery () const =0
virtual std::shared_ptr< BlockQuery >	getBlockQuery () const =0
virtual bool	insertBlock (std::shared_ptr< const shared_model::interface::Block > block)=0
virtual expected::Result< std::unique_ptr< CommandExecutor >, std::string >	createCommandExecutor ()=0
virtual expected::Result< void, std::string >	insertPeer (const shared_model::interface::Peer &peer)=0
virtual std::unique_ptr< MutableStorage >	createMutableStorage (std::shared_ptr< CommandExecutor > command_executor, BlockStorageFactory &storage_factory)=0
virtual rxcpp::observable< std::shared_ptr< const shared_model::interface::Block > >	on_commit ()=0
virtual void	resetPeers ()=0
virtual expected::Result< void, std::string >	dropBlockStorage ()=0
virtual boost::optional< std::shared_ptr< const iroha::LedgerState > >	getLedgerState () const =0
virtual void	freeConnections ()=0
virtual	~Storage ()=default
Public Member Functions inherited from iroha::ametsuchi::TemporaryFactory
virtual std::unique_ptr< TemporaryWsv >	createTemporaryWsv (std::shared_ptr< CommandExecutor > command_executor)=0
virtual void	prepareBlock (std::unique_ptr< TemporaryWsv > wsv)=0
virtual	~TemporaryFactory ()=default
Public Member Functions inherited from iroha::ametsuchi::MutableFactory
virtual std::unique_ptr< MutableStorage >	createMutableStorage (std::shared_ptr< CommandExecutor > command_executor)=0
virtual CommitResult	commit (std::unique_ptr< MutableStorage > mutableStorage)=0
virtual bool	preparedCommitEnabled () const =0
	Check if prepared commits are enabled. More...
virtual CommitResult	commitPrepared (std::shared_ptr< const shared_model::interface::Block > block)=0
virtual	~MutableFactory ()=default
Public Member Functions inherited from iroha::ametsuchi::PeerQueryFactory
virtual boost::optional< std::shared_ptr< PeerQuery > >	createPeerQuery () const =0
virtual	~PeerQueryFactory ()=default
Public Member Functions inherited from iroha::ametsuchi::BlockQueryFactory
virtual boost::optional< std::shared_ptr< BlockQuery > >	createBlockQuery () const =0
virtual	~BlockQueryFactory ()=default
Public Member Functions inherited from iroha::ametsuchi::QueryExecutorFactory
virtual iroha::expected::Result< std::unique_ptr< QueryExecutor >, std::string >	createQueryExecutor (std::shared_ptr< PendingTransactionStorage > pending_txs_storage, std::shared_ptr< shared_model::interface::QueryResponseFactory > response_factory) const =0
virtual	~QueryExecutorFactory ()=default
Public Member Functions inherited from iroha::ametsuchi::SettingQueryFactory
virtual boost::optional< std::unique_ptr< SettingQuery > >	createSettingQuery () const =0
virtual	~SettingQueryFactory ()=default

Detailed Description

Storage interface, which allows queries on current committed state, and creation of state which can be mutated with blocks and transactions

Constructor & Destructor Documentation

~Storage()

virtual iroha::ametsuchi::Storage::~Storage ( )

virtualdefault

Member Function Documentation

createCommandExecutor()

virtual expected::Result<std::unique_ptr<CommandExecutor>, std::string> iroha::ametsuchi::Storage::createCommandExecutor ( )

pure virtual

Create new command executor that holds a database session within.

Returns

The command executor or string error message.

Implemented in iroha::ametsuchi::StorageImpl.

Here is the caller graph for this function:

createMutableStorage()

virtual std::unique_ptr<MutableStorage> iroha::ametsuchi::Storage::createMutableStorage ( std::shared_ptr< CommandExecutor >  command_executor, BlockStorageFactory &  storage_factory  )

pure virtual

Creates a mutable storage from the current state

Returns

Created mutable storage.

Implemented in iroha::ametsuchi::StorageImpl.

Here is the caller graph for this function:

dropBlockStorage()

virtual expected::Result<void, std::string> iroha::ametsuchi::Storage::dropBlockStorage ( )

pure virtual

Remove all blocks from block storage.

Implemented in iroha::ametsuchi::StorageImpl.

freeConnections()

virtual void iroha::ametsuchi::Storage::freeConnections ( )

pure virtual

Implemented in iroha::ametsuchi::StorageImpl.

getBlockQuery()

virtual std::shared_ptr<BlockQuery> iroha::ametsuchi::Storage::getBlockQuery ( ) const

pure virtual

Implemented in iroha::ametsuchi::StorageImpl.

Here is the caller graph for this function:

getLedgerState()

virtual boost::optional<std::shared_ptr<const iroha::LedgerState> > iroha::ametsuchi::Storage::getLedgerState ( ) const

pure virtual

Implemented in iroha::ametsuchi::StorageImpl.

Here is the caller graph for this function:

getWsvQuery()

virtual std::shared_ptr<WsvQuery> iroha::ametsuchi::Storage::getWsvQuery ( ) const

pure virtual

Implemented in iroha::ametsuchi::StorageImpl.

insertBlock()

virtual bool iroha::ametsuchi::Storage::insertBlock ( std::shared_ptr< const shared_model::interface::Block >  block )

pure virtual

Raw insertion of blocks without validation

Parameters

block

- block for insertion

Returns

true if inserted

Implemented in iroha::ametsuchi::StorageImpl.

insertPeer()

virtual expected::Result<void, std::string> iroha::ametsuchi::Storage::insertPeer ( const shared_model::interface::Peer &  peer )

pure virtual

Insert a peer into WSV

Parameters

peer	- peer to insert

Returns

error reason if not inserted

Implemented in iroha::ametsuchi::StorageImpl.

on_commit()

virtual rxcpp::observable< std::shared_ptr<const shared_model::interface::Block> > iroha::ametsuchi::Storage::on_commit ( )

pure virtual

method called when block is written to the storage

Returns

observable with the Block committed

Implemented in iroha::ametsuchi::StorageImpl.

resetPeers()

virtual void iroha::ametsuchi::Storage::resetPeers ( )

pure virtual

Removes all peers from WSV

Implemented in iroha::ametsuchi::StorageImpl.

---

The documentation for this class was generated from the following file:

• irohad/ametsuchi/storage.hpp
