#include "query_response_factory.hpp"

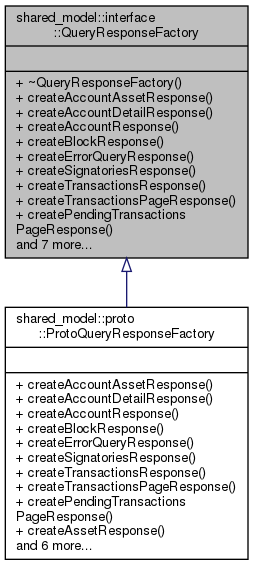

Inheritance diagram for shared_model::interface::QueryResponseFactory:

Collaboration diagram for shared_model::interface::QueryResponseFactory:

Public Types
enum	ErrorQueryType { ErrorQueryType::kStatelessFailed, ErrorQueryType::kStatefulFailed, ErrorQueryType::kNoAccount, ErrorQueryType::kNoAccountAssets, ErrorQueryType::kNoAccountDetail, ErrorQueryType::kNoSignatories, ErrorQueryType::kNotSupported, ErrorQueryType::kNoAsset, ErrorQueryType::kNoRoles }

Public Member Functions
virtual	~QueryResponseFactory ()=default

virtual std::unique_ptr< QueryResponse >	createAccountAssetResponse (std::vector< std::tuple< types::AccountIdType, types::AssetIdType, shared_model::interface::Amount >> assets, size_t total_assets_number, std::optional< shared_model::interface::types::AssetIdType > next_asset_id, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createAccountDetailResponse (types::DetailType account_detail, size_t total_number, std::optional< std::reference_wrapper< const shared_model::interface::AccountDetailRecordId >> next_record_id, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createAccountResponse (interface::types::AccountIdType account_id, interface::types::DomainIdType domain_id, interface::types::QuorumType quorum, interface::types::JsonType jsonData, std::vector< std::string > roles, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createBlockResponse (std::unique_ptr< Block > block, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createErrorQueryResponse (ErrorQueryType error_type, ErrorQueryResponse::ErrorMessageType error_msg, ErrorQueryResponse::ErrorCodeType error_code, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createSignatoriesResponse (std::vector< std::string > signatories, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createTransactionsResponse (std::vector< std::unique_ptr< shared_model::interface::Transaction >> transactions, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createTransactionsPageResponse (std::vector< std::unique_ptr< shared_model::interface::Transaction >> transactions, std::optional< std::reference_wrapper< const crypto::Hash >> next_tx_hash, interface::types::TransactionsNumberType all_transactions_size, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createPendingTransactionsPageResponse (std::vector< std::unique_ptr< interface::Transaction >> transactions, interface::types::TransactionsNumberType all_transactions_size, std::optional< interface::PendingTransactionsPageResponse::BatchInfo > next_batch_info, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createAssetResponse (types::AssetIdType asset_id, types::DomainIdType domain_id, types::PrecisionType precision, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createRolesResponse (std::vector< types::RoleIdType > roles, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createRolePermissionsResponse (RolePermissionSet role_permissions, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createPeersResponse (types::PeerList peers, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< QueryResponse >	createEngineReceiptsResponse (const std::vector< std::unique_ptr< EngineReceipt >> &engine_response_records, const crypto::Hash &query_hash) const =0

virtual std::unique_ptr< BlockQueryResponse >	createBlockQueryResponse (std::shared_ptr< const Block > block) const =0

virtual std::unique_ptr< BlockQueryResponse >	createBlockQueryResponse (std::string error_message) const =0

Detailed Description

Factory for building query responses

Member Enumeration Documentation

◆ ErrorQueryType

enum shared_model::interface::QueryResponseFactory::ErrorQueryType

strong

Describes type of error to be placed inside the error query response

Enumerator
kStatelessFailed
kStatefulFailed
kNoAccount
kNoAccountAssets
kNoAccountDetail
kNoSignatories
kNotSupported
kNoAsset
kNoRoles

Constructor & Destructor Documentation

◆ ~QueryResponseFactory()

virtual shared_model::interface::QueryResponseFactory::~QueryResponseFactory ( )

virtualdefault

Member Function Documentation

◆ createAccountAssetResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createAccountAssetResponse	(	std::vector< std::tuple< types::AccountIdType, types::AssetIdType, shared_model::interface::Amount >>	assets,
		size_t	total_assets_number,
		std::optional< shared_model::interface::types::AssetIdType >	next_asset_id,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for account asset query

Parameters

assets	to be inserted into the response
total_assets_number	the number of all assets as opposed to the page size
next_asset_id	if there are more assets ofter the provided ones, this specifies the id of the first following asset; otherwise none
query_hash	- hash of the query, for which response is created

Returns: account asset response

◆ createAccountDetailResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createAccountDetailResponse	(	types::DetailType	account_detail,
		size_t	total_number,
		std::optional< std::reference_wrapper< const shared_model::interface::AccountDetailRecordId >>	next_record_id,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for account detail query

Parameters

account_detail	to be inserted into the response
total_number	the total number of detail records matching the query, regardless of pagination metadata
next_record_id	the next record id, if any
query_hash	- hash of the query, for which response is created

Returns: account detail response

◆ createAccountResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createAccountResponse	(	interface::types::AccountIdType	account_id,
		interface::types::DomainIdType	domain_id,
		interface::types::QuorumType	quorum,
		interface::types::JsonType	jsonData,
		std::vector< std::string >	roles,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for account query

Parameters

account_id	of account to be inserted into the response
domain_id	of account to be inserted into the response
quorum	of account to be inserted into the response
jsonData	of account to be inserted into the response
roles	to be inserted into the response
query_hash	- hash of the query, for which response is created

Returns: account response

Implemented in shared_model::proto::ProtoQueryResponseFactory.

◆ createAssetResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createAssetResponse	(	types::AssetIdType	asset_id,
		types::DomainIdType	domain_id,
		types::PrecisionType	precision,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for asset query

Parameters

asset_id	of asset to be inserted into the response
domain_id	of asset to be inserted into the response
precision	of asset to be inserted into the response
query_hash	- hash of the query, for which response is created

Returns: asset response

Implemented in shared_model::proto::ProtoQueryResponseFactory.

◆ createBlockQueryResponse() [1/2]

virtual std::unique_ptr<BlockQueryResponse> shared_model::interface::QueryResponseFactory::createBlockQueryResponse ( std::shared_ptr< const Block > block ) const

pure virtual

Create response for block query with block

Parameters

block to be inserted into the response

Returns: block query response with block

◆ createBlockQueryResponse() [2/2]

virtual std::unique_ptr<BlockQueryResponse> shared_model::interface::QueryResponseFactory::createBlockQueryResponse ( std::string error_message ) const

pure virtual

Create response for block query with error

Parameters

error_message to be inserted into the response

Returns: block query response with error

Implemented in shared_model::proto::ProtoQueryResponseFactory.

◆ createBlockResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createBlockResponse	(	std::unique_ptr< Block >	block,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for get block query

Parameters

block	to be inserted into the response
query_hash	- hash of the query, for which response is created

Returns: block response

◆ createEngineReceiptsResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createEngineReceiptsResponse	(	const std::vector< std::unique_ptr< EngineReceipt >> &	engine_response_records,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for EVM response

Parameters

engine_response_records a vector of EVM responses for commands within a transaction

Returns: response message for a transaction

◆ createErrorQueryResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createErrorQueryResponse	(	ErrorQueryType	error_type,
		ErrorQueryResponse::ErrorMessageType	error_msg,
		ErrorQueryResponse::ErrorCodeType	error_code,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for failed query

Parameters

error_type	- type of error to be inserted into the response
error_msg	- message, which is to be set in the response
error_code	- stateful error code to be set in the response
query_hash	- hash of the query, for which response is created

Returns: error response

Implemented in shared_model::proto::ProtoQueryResponseFactory.

◆ createPeersResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createPeersResponse	(	types::PeerList	peers,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for get peers query

Parameters

peers	- list of peers
query_hash	- hash of the query, for which response is created

Returns: get peers response

Implemented in shared_model::proto::ProtoQueryResponseFactory.

◆ createPendingTransactionsPageResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createPendingTransactionsPageResponse	(	std::vector< std::unique_ptr< interface::Transaction >>	transactions,
		interface::types::TransactionsNumberType	all_transactions_size,
		std::optional< interface::PendingTransactionsPageResponse::BatchInfo >	next_batch_info,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create paged response for pending transaction query

Parameters

transactions	- list of transactions on the page
all_transactions_size	- total number of transactions among all the batches in a pending storage for the user
next_batch_info	- optional struct with hash of the first transaction for the following batch and its size (if exists)
query_hash	- hash of the corresponding query

◆ createRolePermissionsResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createRolePermissionsResponse	(	RolePermissionSet	role_permissions,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for role permissions query

Parameters

role_permissions	to be inserted into the response
query_hash	- hash of the query, for which response is created

Returns: role permissions response

Implemented in shared_model::proto::ProtoQueryResponseFactory.

◆ createRolesResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createRolesResponse	(	std::vector< types::RoleIdType >	roles,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for roles query

Parameters

roles	to be inserted into the response
query_hash	- hash of the query, for which response is created

Returns: roles response

◆ createSignatoriesResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createSignatoriesResponse	(	std::vector< std::string >	signatories,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for signatories query

Parameters

signatories	to be inserted into the response
query_hash	- hash of the query, for which response is created

Returns: signatories response

Implemented in shared_model::proto::ProtoQueryResponseFactory.

◆ createTransactionsPageResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createTransactionsPageResponse	(	std::vector< std::unique_ptr< shared_model::interface::Transaction >>	transactions,
		std::optional< std::reference_wrapper< const crypto::Hash >>	next_tx_hash,
		interface::types::TransactionsNumberType	all_transactions_size,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for transactions pagination query

Parameters

transactions	- list of transactions in this page the last in the page
next_tx_hash	- hash of the transaction after
all_transactions_size	- total number of transactions for this query
query_hash	- hash of the query, for which response is created

Returns: transactions response

◆ createTransactionsResponse()

virtual std::unique_ptr<QueryResponse> shared_model::interface::QueryResponseFactory::createTransactionsResponse	(	std::vector< std::unique_ptr< shared_model::interface::Transaction >>	transactions,
		const crypto::Hash &	query_hash
	)		const

pure virtual

Create response for transactions query

Parameters

transactions	to be inserted into the response
query_hash	- hash of the query, for which response is created

Returns: transactions response

The documentation for this class was generated from the following file:

shared_model/interfaces/iroha_internal/query_response_factory.hpp
