iroha::ordering::OnDemandConnectionManager Class Reference

#include "on_demand_connection_manager.hpp"

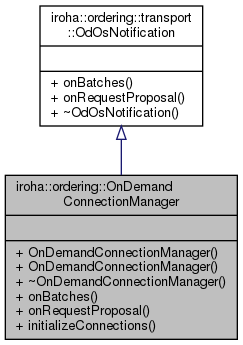

Inheritance diagram for iroha::ordering::OnDemandConnectionManager:

Collaboration diagram for iroha::ordering::OnDemandConnectionManager:

Classes
struct	CurrentPeers

Public Types
enum	PeerType { kRejectConsumer = 0, kCommitConsumer, kIssuer, kCount }
template<typename T >
using	PeerCollectionType = std::array< T, kCount >
	Collection with value types which represent peers. More...
Public Types inherited from iroha::ordering::transport::OdOsNotification
using	TransactionBatchType = std::shared_ptr< shared_model::interface::TransactionBatch >
using	CollectionType = std::vector< TransactionBatchType >

Public Member Functions
	OnDemandConnectionManager (std::shared_ptr< transport::OdOsNotificationFactory > factory, logger::LoggerPtr log)
	OnDemandConnectionManager (std::shared_ptr< transport::OdOsNotificationFactory > factory, CurrentPeers initial_peers, logger::LoggerPtr log)
	~OnDemandConnectionManager () override
void	onBatches (CollectionType batches) override
void	onRequestProposal (consensus::Round round) override
void	initializeConnections (const CurrentPeers &peers)
Public Member Functions inherited from iroha::ordering::transport::OdOsNotification
virtual	~OdOsNotification ()=default

Detailed Description

Proxy class which redirects requests to appropriate peers

Member Typedef Documentation

PeerCollectionType

template<typename T >

using iroha::ordering::OnDemandConnectionManager::PeerCollectionType = std::array<T, kCount>

Collection with value types which represent peers.

Member Enumeration Documentation

PeerType

enum iroha::ordering::OnDemandConnectionManager::PeerType

Responsibilities of individual peers from the peers array Transactions are sent to three ordering services: current round (issuer), reject round, and commit round Proposal is requested from the current ordering service: issuer

Enumerator
kRejectConsumer
kCommitConsumer
kIssuer
kCount

Constructor & Destructor Documentation

OnDemandConnectionManager() [1/2]

OnDemandConnectionManager::OnDemandConnectionManager	(	std::shared_ptr< transport::OdOsNotificationFactory >	factory,
		logger::LoggerPtr	log
	)

OnDemandConnectionManager() [2/2]

OnDemandConnectionManager::OnDemandConnectionManager	(	std::shared_ptr< transport::OdOsNotificationFactory >	factory,
		CurrentPeers	initial_peers,
		logger::LoggerPtr	log
	)

Here is the call graph for this function:

~OnDemandConnectionManager()

OnDemandConnectionManager::~OnDemandConnectionManager ( )

override

Member Function Documentation

initializeConnections()

void OnDemandConnectionManager::initializeConnections

(

const CurrentPeers &

peers

)

Initialize corresponding peers in connections_ using factory_

Parameters

peers

to initialize connections with

Here is the caller graph for this function:

onBatches()

void OnDemandConnectionManager::onBatches ( CollectionType  batches )

overridevirtual

Callback on receiving transactions

Parameters

batches

- vector of passed transaction batches

Implements iroha::ordering::transport::OdOsNotification.

onRequestProposal()

void OnDemandConnectionManager::onRequestProposal ( consensus::Round  round )

overridevirtual

Callback on request about proposal

Parameters

round

- number of collaboration round. Calculated as block_height + 1

Implements iroha::ordering::transport::OdOsNotification.

---

The documentation for this class was generated from the following files:

• irohad/ordering/impl/on_demand_connection_manager.hpp
• irohad/ordering/impl/on_demand_connection_manager.cpp
