iroha::torii::CommandServiceTransportGrpc Class Reference

#include "command_service_transport_grpc.hpp"

Inheritance diagram for iroha::torii::CommandServiceTransportGrpc:

Collaboration diagram for iroha::torii::CommandServiceTransportGrpc:

Classes
struct	ConsensusGateEvent

Public Types
using	TransportFactoryType = shared_model::interface::AbstractTransportFactory< shared_model::interface::Transaction, iroha::protocol::Transaction >

Public Member Functions
	CommandServiceTransportGrpc (std::shared_ptr< CommandService > command_service, std::shared_ptr< iroha::torii::StatusBus > status_bus, std::shared_ptr< shared_model::interface::TxStatusFactory > status_factory, std::shared_ptr< TransportFactoryType > transaction_factory, std::shared_ptr< shared_model::interface::TransactionBatchParser > batch_parser, std::shared_ptr< shared_model::interface::TransactionBatchFactory > transaction_batch_factory, int maximum_rounds_without_update, logger::LoggerPtr log)
grpc::Status	Torii (grpc::ServerContext *context, const iroha::protocol::Transaction *request, google::protobuf::Empty *response) override
grpc::Status	ListTorii (grpc::ServerContext *context, const iroha::protocol::TxList *request, google::protobuf::Empty *response) override
grpc::Status	Status (grpc::ServerContext *context, const iroha::protocol::TxStatusRequest *request, iroha::protocol::ToriiResponse *response) override
grpc::Status	StatusStream (grpc::ServerContext *context, const iroha::protocol::TxStatusRequest *request, grpc::ServerWriter< iroha::protocol::ToriiResponse > *response_writer) override

Member Typedef Documentation

TransportFactoryType

using iroha::torii::CommandServiceTransportGrpc::TransportFactoryType = shared_model::interface::AbstractTransportFactory< shared_model::interface::Transaction, iroha::protocol::Transaction>

Constructor & Destructor Documentation

CommandServiceTransportGrpc()

CommandServiceTransportGrpc::CommandServiceTransportGrpc	(	std::shared_ptr< CommandService >	command_service,
		std::shared_ptr< iroha::torii::StatusBus >	status_bus,
		std::shared_ptr< shared_model::interface::TxStatusFactory >	status_factory,
		std::shared_ptr< TransportFactoryType >	transaction_factory,
		std::shared_ptr< shared_model::interface::TransactionBatchParser >	batch_parser,
		std::shared_ptr< shared_model::interface::TransactionBatchFactory >	transaction_batch_factory,
		int	maximum_rounds_without_update,
		logger::LoggerPtr	log
	)

Creates a new instance of CommandServiceTransportGrpc

Parameters

command_service	- to delegate logic work
status_bus	is a common notifier for tx statuses
status_factory	- factory of statuses
transaction_factory	- factory of transactions
batch_parser	- parses of batches
transaction_batch_factory	- factory of batchesof transactions
maximum_rounds_without_update	- defines how long tx status stream is kept alive when no new tx statuses appear
log	to print progress

Member Function Documentation

ListTorii()

grpc::Status CommandServiceTransportGrpc::ListTorii ( grpc::ServerContext *  context, const iroha::protocol::TxList *  request, google::protobuf::Empty *  response  )

override

Torii call for transactions list via grpc

Parameters

context	- call context (see grpc docs for details)
request	- list of transactions received
response	- no actual response (grpc stub for empty answer)

Returns

status

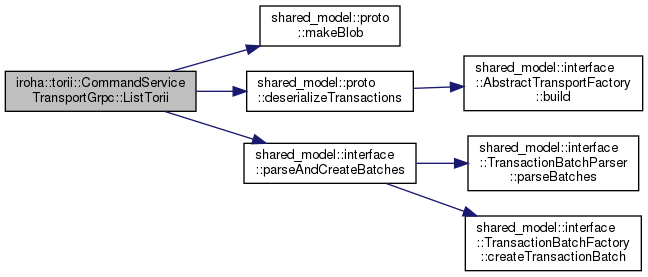

Here is the call graph for this function:

Here is the caller graph for this function:

Status()

grpc::Status CommandServiceTransportGrpc::Status ( grpc::ServerContext *  context, const iroha::protocol::TxStatusRequest *  request, iroha::protocol::ToriiResponse *  response  )

override

Status call via grpc

Parameters

context	- call context
request	- TxStatusRequest object which identifies transaction uniquely
response	- ToriiResponse which contains a current state of requested transaction

Returns

status

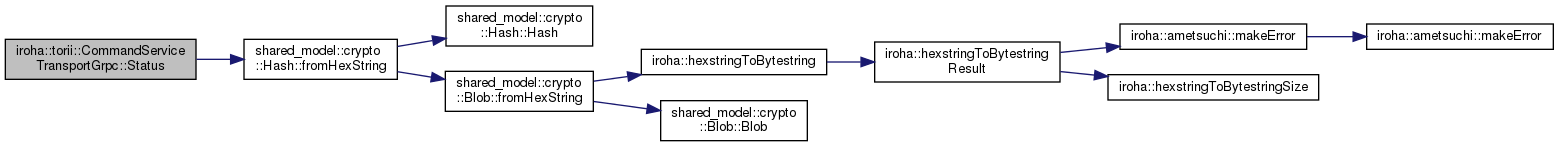

Here is the call graph for this function:

StatusStream()

grpc::Status CommandServiceTransportGrpc::StatusStream ( grpc::ServerContext *  context, const iroha::protocol::TxStatusRequest *  request, grpc::ServerWriter< iroha::protocol::ToriiResponse > *  response_writer  )

override

StatusStream call via grpc

Parameters

context	- call context
request	- TxStatusRequest object which identifies transaction uniquely
response_writer	- grpc::ServerWriter which can repeatedly send transaction statuses back to the client

Returns

status

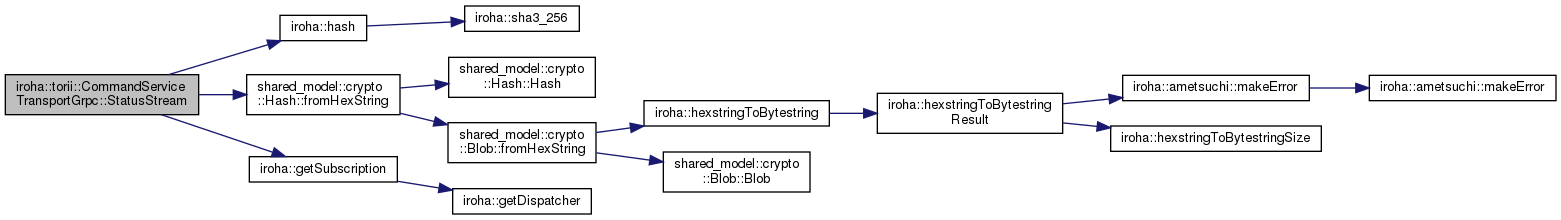

Here is the call graph for this function:

Torii()

grpc::Status CommandServiceTransportGrpc::Torii ( grpc::ServerContext *  context, const iroha::protocol::Transaction *  request, google::protobuf::Empty *  response  )

override

Torii call via grpc

Parameters

context	- call context (see grpc docs for details)
request	- transaction received
response	- no actual response (grpc stub for empty answer)

Returns

status

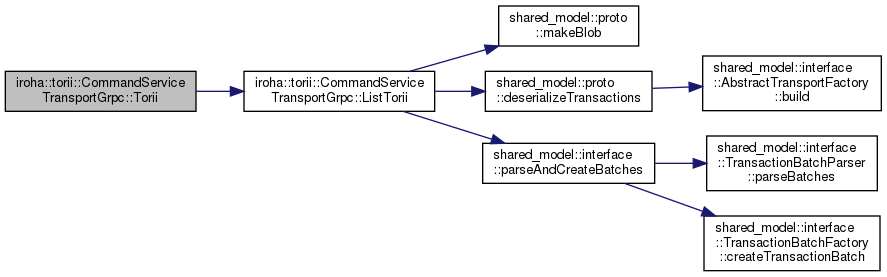

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• irohad/torii/impl/command_service_transport_grpc.hpp
• irohad/torii/impl/command_service_transport_grpc.cpp
