iroha_cli::interactive Namespace Reference

Classes
class	InteractiveCli
class	InteractiveQueryCli
class	InteractiveStatusCli
class	InteractiveTransactionCli
struct	ParamData

Typedefs
using	ParamsDescription = std::vector< ParamData >
using	DescriptionMap = std::unordered_map< std::string, std::string >
using	MenuPoints = std::vector< std::string >
using	ParamsMap = std::unordered_map< std::string, ParamsDescription >

Enumerations
enum	MenuContext { MAIN, RESULT }

Functions
DescriptionMap	getCommonDescriptionMap ()
ParamsMap	getCommonParamsMap (const std::string &default_ip, int default_port)
ParamsDescription	makeParamsDescription (const std::vector< std::string > &params)
void	handleEmptyCommand ()
void	handleUnknownCommand (std::string &command)
void	addBackOption (MenuPoints &menu)
bool	isBackOption (std::string line)
void	printCommandParameters (std::string &command, const ParamsDescription &parameters)
void	printMenu (const std::string &message, MenuPoints menu_points)
boost::optional< std::string >	promptString (const std::string &message)
boost::optional< std::string >	promptString (const ParamData &param)
void	printEnd ()
boost::optional< std::pair< std::string, uint16_t > >	parseIrohaPeerParams (std::vector< std::string > params, const std::string &default_ip, int default_port)
boost::optional< std::vector< std::string > >	parseParams (std::string line, std::string command_name, ParamsMap &params_map)
size_t	addMenuPoint (std::vector< std::string > &menu_points, const std::string &description, const std::string &command_short_name)
static void	printMenu (const MenuPoints &menu)
template<typename K , typename V >
std::size_t	getNextIndex (std::unordered_map< K, V > parsers_map)
template<typename K , typename V >
boost::optional< V & >	findInHandlerMap (K command_name, std::unordered_map< K, V > &params_map)
template<typename T , typename V , typename C >
boost::optional< T >	handleParse (C class_pointer, std::string &line, std::unordered_map< std::string, V > &parsers_map, ParamsMap &params_map)
template<typename V >
void	addCliCommand (MenuPoints &menu_points, std::unordered_map< std::string, V > &parsers_map, const std::string &command_name, const std::string &command_description, V parser)
template<typename V >
MenuPoints	formMenu (std::unordered_map< std::string, V > &parsers_map, ParamsMap &paramsMap, const DescriptionMap descriptionMap)

Variables
static const std::map< iroha::protocol::TxStatus, std::string >	userMessageMap
const std::string	SAVE_CODE = "save"
const std::string	SEND_CODE = "send"
const std::string	BACK_CODE = "b"

Typedef Documentation

DescriptionMap

using iroha_cli::interactive::DescriptionMap = typedef std::unordered_map<std::string, std::string>

MenuPoints

using iroha_cli::interactive::MenuPoints = typedef std::vector<std::string>

ParamsDescription

using iroha_cli::interactive::ParamsDescription = typedef std::vector<ParamData>

ParamsMap

using iroha_cli::interactive::ParamsMap = typedef std::unordered_map<std::string, ParamsDescription>

Enumeration Type Documentation

MenuContext

enum iroha_cli::interactive::MenuContext

Parsing menu context, used to identify the context of parsing

Enumerator
MAIN	Main menu context, used to print all commands/queries
RESULT	Result menu, used for send, save tx/query

Function Documentation

addBackOption()

void iroha_cli::interactive::addBackOption

(

MenuPoints &

menu

)

Add back option to menu

Parameters

menu	- menu to add the back option

Here is the caller graph for this function:

addCliCommand()

template<typename V >

void iroha_cli::interactive::addCliCommand	(	MenuPoints &	menu_points,
		std::unordered_map< std::string, V > &	parsers_map,
		const std::string &	command_name,
		const std::string &	command_description,
		V	parser
	)

Add new cli command to menu points and menu handlers (parsers)

Template Parameters

V	type of parser functions in parsers_map

Parameters

menu_points	- menu to which points will be added
parsers_map	- map holding specific parser functions
command_name	- short command name
command_description	- description for the command
parser	- specific parser for current command

Here is the call graph for this function:

addMenuPoint()

size_t iroha_cli::interactive::addMenuPoint	(	std::vector< std::string > &	menu_points,
		const std::string &	description,
		const std::string &	command_short_name
	)

Add menu point to vector menu

Parameters

menu_points	to add new point
description	of the command to add
command_short_name	command short name

Here is the caller graph for this function:

findInHandlerMap()

template<typename K , typename V >

boost::optional<V &> iroha_cli::interactive::findInHandlerMap	(	K	command_name,
		std::unordered_map< K, V > &	params_map
	)

Find in unordered map with error reporting. Will print unkown command if key not found.

Template Parameters

K	key type
V	value type

Parameters

command_name	- key to find in the map
params_map	- map

Returns

nullopt if key not found, value if found

Here is the call graph for this function:

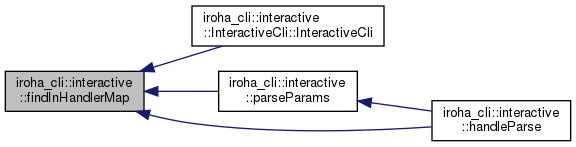

Here is the caller graph for this function:

formMenu()

template<typename V >

MenuPoints iroha_cli::interactive::formMenu	(	std::unordered_map< std::string, V > &	parsers_map,
		ParamsMap &	paramsMap,
		const DescriptionMap	descriptionMap
	)

Form menu points from given parameters and bind index of the command with their parser and parameters

Template Parameters

V	- type of specific parser functions in parsers_map

Parameters

parsers_map	- map holding specific parser functions
paramsMap	- map holding descriptions for command parameters
descriptionMap	- map holding description of a command

Returns

Formed menu points

Here is the call graph for this function:

Here is the caller graph for this function:

getCommonDescriptionMap()

DescriptionMap iroha_cli::interactive::getCommonDescriptionMap

(

)

Return mapping of Command_name to Command description

Returns

DesciptionMap for common commands

Here is the caller graph for this function:

getCommonParamsMap()

ParamsMap iroha_cli::interactive::getCommonParamsMap	(	const std::string &	default_ip,
		int	default_port
	)

Return mapping of Command_name to parameters descriptions

Parameters

default_ip	- default hostname or IP to be used when connecting to irohad
default_port	- default port to be used when connecting to irohad

Returns

ParamsMap with parameters of common commands

Here is the call graph for this function:

Here is the caller graph for this function:

getNextIndex()

template<typename K , typename V >

std::size_t iroha_cli::interactive::getNextIndex

(

std::unordered_map< K, V >

parsers_map

)

Get next numerical index in the map. Used to build menu

Template Parameters

K	- key type in map
V	- value type in map

Parameters

parsers_map

- map to process

Returns

index for the next menu point

handleEmptyCommand()

void iroha_cli::interactive::handleEmptyCommand

(

)

Handle error with empty command

Here is the caller graph for this function:

handleParse()

template<typename T , typename V , typename C >

boost::optional<T> iroha_cli::interactive::handleParse	(	C	class_pointer,
		std::string &	line,
		std::unordered_map< std::string, V > &	parsers_map,
		ParamsMap &	params_map
	)

Handle parsing routine:

• find appropriate parser function for the command
• get input from user for the command
• trigger specific parser

  Template Parameters

  T	- expected return type of a parsing function
  V	- type of the parser function in parsers_map
  C	- class type of class_pointer

  Parameters

  class_pointer	- class pointer that holds parser functions
  line	- line to parse
  parsers_map	- map holding parser functions
  params_map	- map holding descriptions for command parameters

  Returns

  T if parsing successful, nullopt otherwise

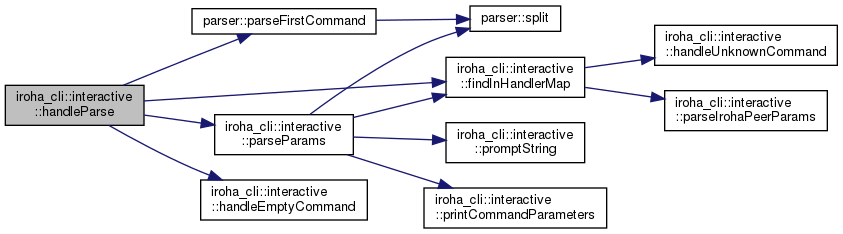

Here is the call graph for this function:

handleUnknownCommand()

void iroha_cli::interactive::handleUnknownCommand

(

std::string &

command

)

Handle error of unknown command

Parameters

command

- name of unknown command

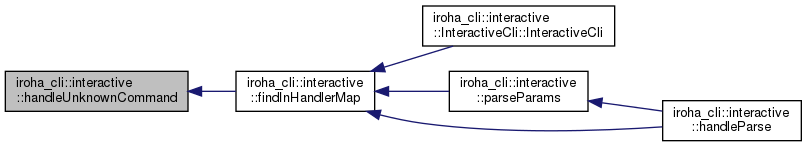

Here is the caller graph for this function:

isBackOption()

bool iroha_cli::interactive::isBackOption

(

std::string

line

)

Is line contains "Go Back" option

Parameters

line

to parse

Returns

true if line has command "go back"

Here is the call graph for this function:

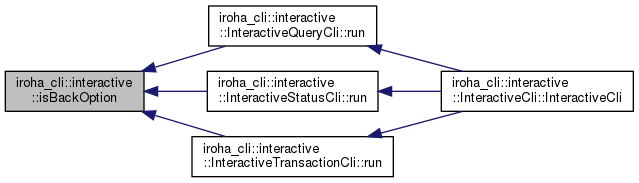

Here is the caller graph for this function:

makeParamsDescription()

ParamsDescription iroha_cli::interactive::makeParamsDescription

(

const std::vector< std::string > &

params

)

Creates parameters descriptions with empty default/cache values

Parameters

params

- parameters as a vector of prompt messages

Returns

ParamsDescription with parameter data

Here is the caller graph for this function:

parseIrohaPeerParams()

boost::optional< std::pair< std::string, uint16_t > > iroha_cli::interactive::parseIrohaPeerParams	(	std::vector< std::string >	params,
		const std::string &	default_ip,
		int	default_port
	)

Parse parameters related to Iroha Peer

Parameters

params

in format: vector of strings

Returns

pair if ip and port if formed right, nullopt otherwise

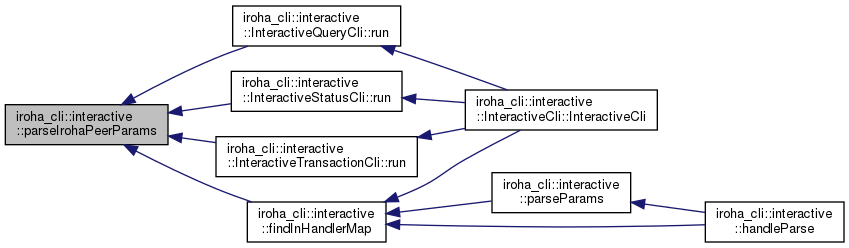

Here is the caller graph for this function:

parseParams()

boost::optional< std::vector< std::string > > iroha_cli::interactive::parseParams	(	std::string	line,
		std::string	command_name,
		ParamsMap &	params_map
	)

Parse parameters in interactive and shortcuted mode. Function run interactive mode if in line only the command name is passed. Function will parse all needed parameters from line if the line with commands is passed, it will print help if there are not enough parameters in line.

Parameters

line	- cli line to parse
command_name	- command name to print
notes	- parameters needed to run the command

Returns

vector with needed parameters

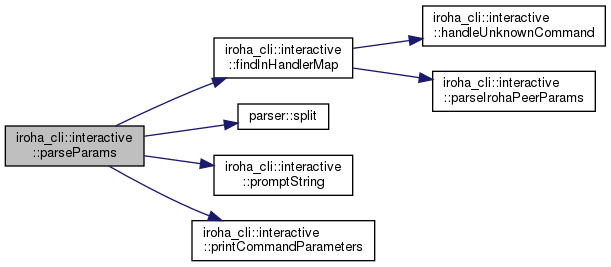

Here is the call graph for this function:

Here is the caller graph for this function:

printCommandParameters()

void iroha_cli::interactive::printCommandParameters	(	std::string &	command,
		const ParamsDescription &	parameters
	)

Print help for cli command.

Parameters

command	- name of the cli command
parameters	needed to run the command

Here is the caller graph for this function:

printEnd()

void iroha_cli::interactive::printEnd

(

)

Print end of session symbol

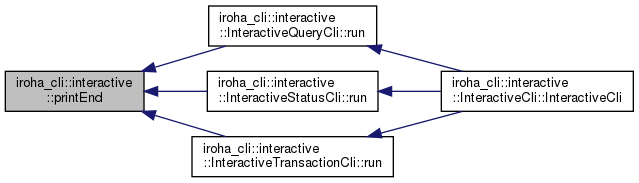

Here is the caller graph for this function:

printMenu() [1/2]

void iroha_cli::interactive::printMenu	(	const std::string &	message,
		MenuPoints	menu_points
	)

Pretty Print of menu

Parameters

message	- message to print before menu
menu_points	- elements of the menu

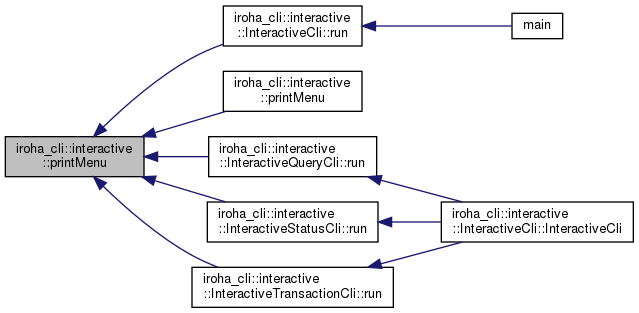

Here is the caller graph for this function:

printMenu() [2/2]

static void iroha_cli::interactive::printMenu ( const MenuPoints &  menu )

static

Here is the call graph for this function:

promptString() [1/2]

boost::optional< std::string > iroha_cli::interactive::promptString

(

const std::string &

message

)

Get string input from user

Parameters

message

Message to ask user

Returns

nullopt if termintaing symbol, else user's input

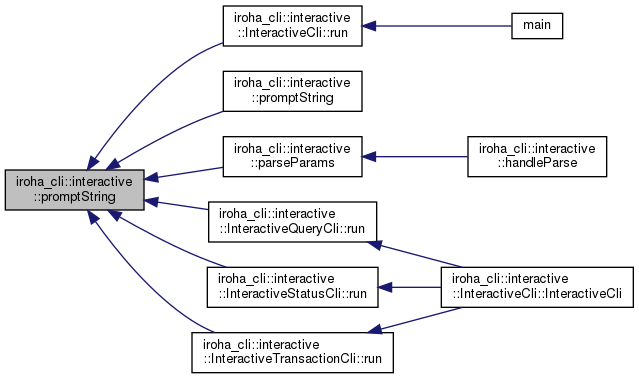

Here is the caller graph for this function:

promptString() [2/2]

boost::optional< std::string > iroha_cli::interactive::promptString

(

const ParamData &

param

)

Construct a prompt and get a string input from user

Parameters

param

Parameter to collect the input for

Returns

nullopt if termintaing symbol, else user's input

Here is the call graph for this function:

Variable Documentation

BACK_CODE

const std::string iroha_cli::interactive::BACK_CODE = "b"

SAVE_CODE

const std::string iroha_cli::interactive::SAVE_CODE = "save"

SEND_CODE

const std::string iroha_cli::interactive::SEND_CODE = "send"

userMessageMap

const std::map<iroha::protocol::TxStatus, std::string> iroha_cli::interactive::userMessageMap

static

Initial value:

= {
            {iroha::protocol::TxStatus::STATELESS_VALIDATION_FAILED,
             "Transaction has not passed stateless validation."},
            {iroha::protocol::TxStatus::STATELESS_VALIDATION_SUCCESS,
             "Transaction has successfully passed stateless validation."},
            {iroha::protocol::TxStatus::STATEFUL_VALIDATION_FAILED,
             "Transaction has not passed stateful validation."},
            {iroha::protocol::TxStatus::STATEFUL_VALIDATION_SUCCESS,
             "Transaction has successfully passed stateful validation."},
            {iroha::protocol::TxStatus::REJECTED,
             "Transaction has been rejected."},
            {iroha::protocol::TxStatus::COMMITTED,
             "Transaction was successfully committed."},
            {iroha::protocol::TxStatus::MST_EXPIRED,
             "Transaction has not collected enough signatures in time."},
            {iroha::protocol::TxStatus::NOT_RECEIVED,
             "Transaction was not found in the system."},
            {iroha::protocol::TxStatus::MST_PENDING,
             "Transaction has not collected quorum of signatures."},
            {iroha::protocol::TxStatus::ENOUGH_SIGNATURES_COLLECTED,
             "Transaction has collected all signatures."}}
