shared_model::interface::Ordering Class Reference

#include "ordering.hpp"

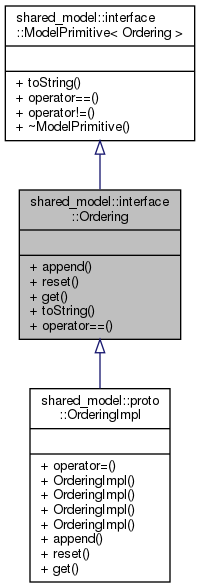

Inheritance diagram for shared_model::interface::Ordering:

Collaboration diagram for shared_model::interface::Ordering:

Classes
struct	OrderingEntry

Public Types
enum	Field : size_t { Field::kCreatedTime = 0, Field::kPosition, Field::kMaxValueCount, Field::kUnknownValue = kMaxValueCount }
enum	Direction : size_t { Direction::kAscending = 0, Direction::kDescending, Direction::kMaxValueCount, Direction::kUnknownValue = kMaxValueCount }
Public Types inherited from shared_model::interface::ModelPrimitive< Ordering >
using	ModelType = Ordering

Public Member Functions
virtual bool	append (Field field, Direction direction)=0
virtual void	reset ()=0
virtual void	get (OrderingEntry const *&orderingEntry, size_t &count) const =0
std::string	toString () const override
bool	operator== (const ModelType &rhs) const override
Public Member Functions inherited from shared_model::interface::ModelPrimitive< Ordering >
virtual bool	operator== (const ModelType &rhs) const=0
virtual bool	operator!= (const ModelType &rhs) const
virtual	~ModelPrimitive ()=default

Detailed Description

Class Ordering provides description of data ordering in queries. General note: this is interface.

Member Enumeration Documentation

Direction

enum shared_model::interface::Ordering::Direction : size_t

strong

Ordering direction for each field.

Enumerator
kAscending
kDescending
kMaxValueCount
kUnknownValue

Field

enum shared_model::interface::Ordering::Field : size_t

strong

Field name for ordering entry.

Enumerator
kCreatedTime
kPosition
kMaxValueCount
kUnknownValue

Member Function Documentation

append()

virtual bool shared_model::interface::Ordering::append ( Field  field, Direction  direction  )

pure virtual

Append - stores field and direction entry uniquely. The insertion order determines the ordering priority.

Returns

the insertion result(true - inserted, false - skipped).

get()

virtual void shared_model::interface::Ordering::get ( OrderingEntry const *&  orderingEntry, size_t &  count  ) const

pure virtual

Get - returns data sorted in the insertion order. is a reference to a const OrderingEntry pointer, which positions to the first element is a number of OrderingEntry items

Here is the caller graph for this function:

operator==()

bool Ordering::operator== ( const ModelType &  rhs ) const

override

reset()

virtual void shared_model::interface::Ordering::reset ( )

pure virtual

Reset - drops all saved data.

Implemented in shared_model::proto::OrderingImpl.

toString()

std::string Ordering::toString ( ) const

overridevirtual

Make string developer representation of object

Returns

string with internal state of object

Reimplemented from shared_model::interface::ModelPrimitive< Ordering >.

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• shared_model/interfaces/queries/ordering.hpp
• shared_model/interfaces/queries/impl/ordering.cpp
