iroha::network::MstTransportGrpc Class Reference

#include "mst_transport_grpc.hpp"

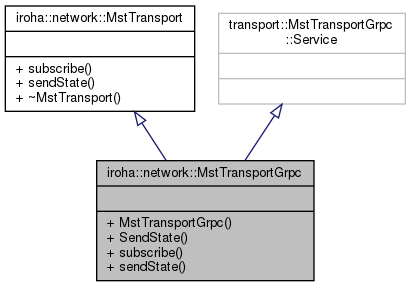

Inheritance diagram for iroha::network::MstTransportGrpc:

Collaboration diagram for iroha::network::MstTransportGrpc:

Public Types
using	SenderFactory = std::function< std::unique_ptr< transport::MstTransportGrpc::StubInterface >(const shared_model::interface::Peer &)>
using	TransportFactoryType = shared_model::interface::AbstractTransportFactory< shared_model::interface::Transaction, iroha::protocol::Transaction >

Public Member Functions
	MstTransportGrpc (std::shared_ptr< network::AsyncGrpcClient< google::protobuf::Empty >> async_call, std::shared_ptr< TransportFactoryType > transaction_factory, std::shared_ptr< shared_model::interface::TransactionBatchParser > batch_parser, std::shared_ptr< shared_model::interface::TransactionBatchFactory > transaction_batch_factory, std::shared_ptr< iroha::ametsuchi::TxPresenceCache > tx_presence_cache, std::shared_ptr< Completer > mst_completer, shared_model::interface::types::PublicKeyHexStringView my_key, logger::LoggerPtr mst_state_logger, logger::LoggerPtr log, boost::optional< SenderFactory >=boost::none)
grpc::Status	SendState (::grpc::ServerContext *context, const ::iroha::network::transport::MstState *request, ::google::protobuf::Empty *response) override
void	subscribe (std::shared_ptr< MstTransportNotification > notification) override
rxcpp::observable< bool >	sendState (std::shared_ptr< shared_model::interface::Peer const > to, MstState const &providing_state) override
Public Member Functions inherited from iroha::network::MstTransport
virtual	~MstTransport ()=default

Member Typedef Documentation

SenderFactory

using iroha::network::MstTransportGrpc::SenderFactory = std::function< std::unique_ptr<transport::MstTransportGrpc::StubInterface>( const shared_model::interface::Peer &)>

TransportFactoryType

using iroha::network::MstTransportGrpc::TransportFactoryType = shared_model::interface::AbstractTransportFactory< shared_model::interface::Transaction, iroha::protocol::Transaction>

Constructor & Destructor Documentation

MstTransportGrpc()

MstTransportGrpc::MstTransportGrpc	(	std::shared_ptr< network::AsyncGrpcClient< google::protobuf::Empty >>	async_call,
		std::shared_ptr< TransportFactoryType >	transaction_factory,
		std::shared_ptr< shared_model::interface::TransactionBatchParser >	batch_parser,
		std::shared_ptr< shared_model::interface::TransactionBatchFactory >	transaction_batch_factory,
		std::shared_ptr< iroha::ametsuchi::TxPresenceCache >	tx_presence_cache,
		std::shared_ptr< Completer >	mst_completer,
		shared_model::interface::types::PublicKeyHexStringView	my_key,
		logger::LoggerPtr	mst_state_logger,
		logger::LoggerPtr	log,
		boost::optional< SenderFactory >	= boost::none
	)

Member Function Documentation

SendState()

grpc::Status MstTransportGrpc::SendState ( ::grpc::ServerContext *  context, const ::iroha::network::transport::MstState *  request, ::google::protobuf::Empty *  response  )

override

Server part of grpc SendState method call

Parameters

context	- server context with information about call
request	- received new MstState object
response	- buffer for response data, not used

Returns

grpc::Status (always OK)

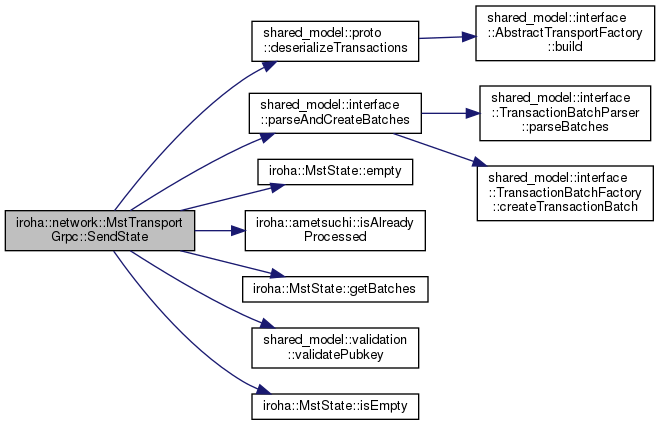

Here is the call graph for this function:

sendState()

rxcpp::observable< bool > MstTransportGrpc::sendState ( std::shared_ptr< shared_model::interface::Peer const >  to, MstState const &  providing_state  )

overridevirtual

Share state with other peer

Parameters

to	- peer recipient of message
providing_state	- state for transmitting

Returns

true if transmission was successful, false otherwise

Implements iroha::network::MstTransport.

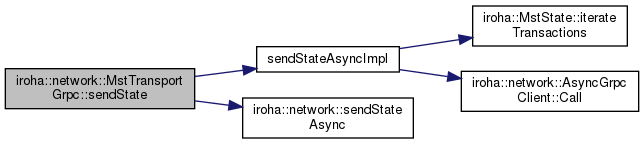

Here is the call graph for this function:

subscribe()

void MstTransportGrpc::subscribe ( std::shared_ptr< MstTransportNotification >  notification )

overridevirtual

Subscribe object for receiving notifications

Parameters

notification

- object that will be notified on updates

Implements iroha::network::MstTransport.

---

The documentation for this class was generated from the following files:

• irohad/multi_sig_transactions/transport/mst_transport_grpc.hpp
• irohad/multi_sig_transactions/transport/impl/mst_transport_grpc.cpp
