shared_model::interface::Signable< Model, HashProvider > Class Template Reference

#include "signable.hpp"

Inheritance diagram for shared_model::interface::Signable< Model, HashProvider >:

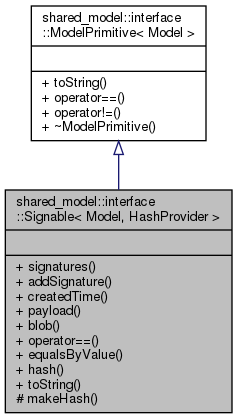

Collaboration diagram for shared_model::interface::Signable< Model, HashProvider >:

Classes
class	SignatureSetTypeOps

Public Member Functions
virtual types::SignatureRangeType	signatures () const =0
virtual bool	addSignature (types::SignedHexStringView signed_blob, types::PublicKeyHexStringView public_key)=0
virtual types::TimestampType	createdTime () const =0
virtual const types::BlobType &	payload () const =0
virtual const types::BlobType &	blob () const =0
bool	operator== (const Model &rhs) const override
bool	equalsByValue (const Model &rhs) const
virtual const types::HashType &	hash () const =0
std::string	toString () const override
Public Member Functions inherited from shared_model::interface::ModelPrimitive< Model >
virtual bool	operator!= (const ModelType &rhs) const
virtual	~ModelPrimitive ()=default

Protected Types
template<typename T >
using	SignatureSetType = std::unordered_set< T, SignatureSetTypeOps, SignatureSetTypeOps >

Static Protected Member Functions
static auto	makeHash (const types::BlobType &payload)

Additional Inherited Members
Public Types inherited from shared_model::interface::ModelPrimitive< Model >
using	ModelType = Model

Detailed Description

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>
class shared_model::interface::Signable< Model, HashProvider >

Interface provides signatures and adds them to model object

Template Parameters

Model

- your model

Member Typedef Documentation

SignatureSetType

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

template<typename T >

using shared_model::interface::Signable< Model, HashProvider >::SignatureSetType = std::unordered_set<T, SignatureSetTypeOps, SignatureSetTypeOps>

protected

Member Function Documentation

addSignature()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

virtual bool shared_model::interface::Signable< Model, HashProvider >::addSignature ( types::SignedHexStringView  signed_blob, types::PublicKeyHexStringView  public_key  )

pure virtual

Attach signature to object

Returns

true, if signature was added

blob()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

virtual const types::BlobType& shared_model::interface::Signable< Model, HashProvider >::blob ( ) const

pure virtual

Returns

blob representation of object include signatures

Implemented in shared_model::proto::Query, shared_model::proto::Transaction, shared_model::proto::Block, and shared_model::proto::BlocksQuery.

createdTime()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

virtual types::TimestampType shared_model::interface::Signable< Model, HashProvider >::createdTime ( ) const

pure virtual

Returns

time of creation

Implemented in shared_model::proto::Transaction, shared_model::proto::Query, shared_model::proto::Block, and shared_model::proto::BlocksQuery.

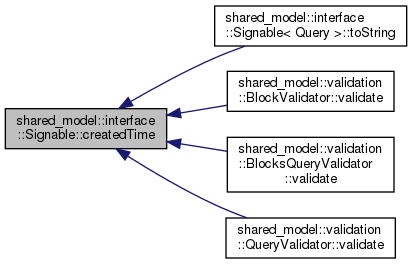

Here is the caller graph for this function:

equalsByValue()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

bool shared_model::interface::Signable< Model, HashProvider >::equalsByValue ( const Model &  rhs ) const

inline

Provides comaprison based on equality objects only

Parameters

rhs	- another model object

Returns

true, if hashes of objects are equal

Here is the caller graph for this function:

hash()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

virtual const types::HashType& shared_model::interface::Signable< Model, HashProvider >::hash ( ) const

pure virtual

Implemented in shared_model::proto::Transaction, shared_model::proto::Query, shared_model::proto::Block, and shared_model::proto::BlocksQuery.

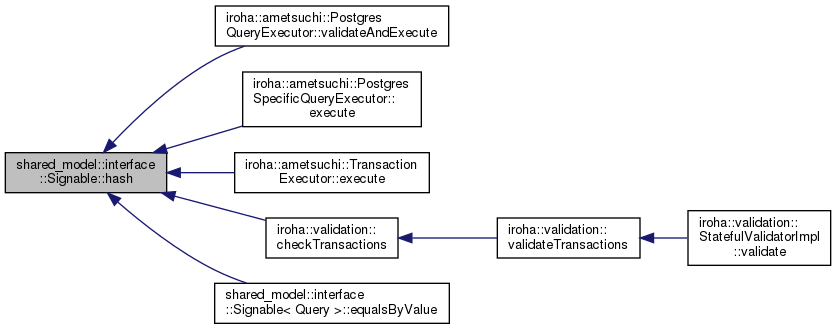

Here is the caller graph for this function:

makeHash()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

static auto shared_model::interface::Signable< Model, HashProvider >::makeHash ( const types::BlobType &  payload )

inlinestaticprotected

operator==()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

bool shared_model::interface::Signable< Model, HashProvider >::operator== ( const Model &  rhs ) const

inlineoverridevirtual

Provides comparison based on equality of objects and signatures.

Parameters

rhs	- another model object

Returns

true, if objects totally equal

Implements shared_model::interface::ModelPrimitive< Model >.

payload()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

virtual const types::BlobType& shared_model::interface::Signable< Model, HashProvider >::payload ( ) const

pure virtual

Returns

object payload (everything except signatures)

Implemented in shared_model::proto::Block, shared_model::proto::Query, shared_model::proto::Transaction, and shared_model::proto::BlocksQuery.

signatures()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

virtual types::SignatureRangeType shared_model::interface::Signable< Model, HashProvider >::signatures ( ) const

pure virtual

Returns

attached signatures

Implemented in shared_model::proto::Transaction, shared_model::proto::Query, shared_model::proto::Block, and shared_model::proto::BlocksQuery.

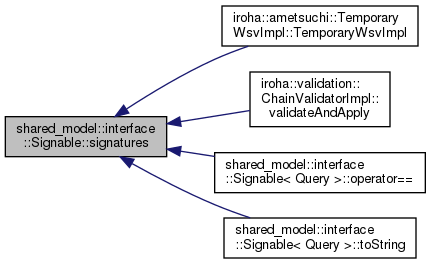

Here is the caller graph for this function:

toString()

template<typename Model, typename HashProvider = shared_model::crypto::Sha3_256>

std::string shared_model::interface::Signable< Model, HashProvider >::toString ( ) const

inlineoverridevirtual

Make string developer representation of object

Returns

string with internal state of object

Reimplemented from shared_model::interface::ModelPrimitive< Model >.

Here is the caller graph for this function:

---

The documentation for this class was generated from the following file:

• shared_model/interfaces/base/signable.hpp
