shared_model::interface::TransactionResponse Class Reference

#include "tx_response.hpp"

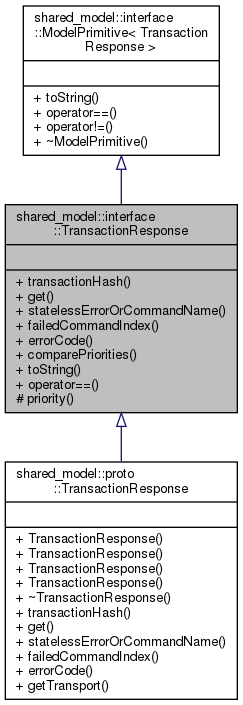

Inheritance diagram for shared_model::interface::TransactionResponse:

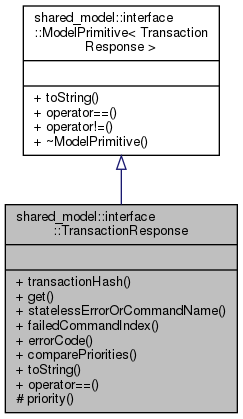

Collaboration diagram for shared_model::interface::TransactionResponse:

Public Types
enum	PrioritiesComparisonResult { PrioritiesComparisonResult::kLess, PrioritiesComparisonResult::kEqual, PrioritiesComparisonResult::kGreater }
using	ResponseVariantType = wrap< StatelessFailedTxResponse, StatelessValidTxResponse, StatefulFailedTxResponse, StatefulValidTxResponse, RejectedTxResponse, CommittedTxResponse, MstExpiredResponse, NotReceivedTxResponse, MstPendingResponse, EnoughSignaturesCollectedResponse >
	Type of variant, that handle all concrete tx responses in the system. More...
using	TransactionHashType = interface::types::HashType
	Type of transaction hash. More...
using	StatelessErrorOrFailedCommandNameType = std::string
using	FailedCommandIndexType = size_t
	Type of command index, which failed validation. More...
using	ErrorCodeType = uint32_t
	Type of command error code. More...
Public Types inherited from shared_model::interface::ModelPrimitive< TransactionResponse >
using	ModelType = TransactionResponse

Public Member Functions
virtual const TransactionHashType &	transactionHash () const =0
virtual const ResponseVariantType &	get () const =0
virtual const StatelessErrorOrFailedCommandNameType &	statelessErrorOrCommandName () const =0
virtual FailedCommandIndexType	failedCommandIndex () const =0
virtual ErrorCodeType	errorCode () const =0
PrioritiesComparisonResult	comparePriorities (const ModelType &other) const noexcept
std::string	toString () const override
bool	operator== (const ModelType &rhs) const override
Public Member Functions inherited from shared_model::interface::ModelPrimitive< TransactionResponse >
virtual bool	operator== (const ModelType &rhs) const=0
virtual bool	operator!= (const ModelType &rhs) const
virtual	~ModelPrimitive ()=default

Protected Member Functions
virtual int	priority () const noexcept=0

Detailed Description

TransactionResponse is a status of transaction in system

Member Typedef Documentation

ErrorCodeType

using shared_model::interface::TransactionResponse::ErrorCodeType = uint32_t

Type of command error code.

FailedCommandIndexType

using shared_model::interface::TransactionResponse::FailedCommandIndexType = size_t

Type of command index, which failed validation.

ResponseVariantType

using shared_model::interface::TransactionResponse::ResponseVariantType = wrap<StatelessFailedTxResponse, StatelessValidTxResponse, StatefulFailedTxResponse, StatefulValidTxResponse, RejectedTxResponse, CommittedTxResponse, MstExpiredResponse, NotReceivedTxResponse, MstPendingResponse, EnoughSignaturesCollectedResponse>

Type of variant, that handle all concrete tx responses in the system.

StatelessErrorOrFailedCommandNameType

using shared_model::interface::TransactionResponse::StatelessErrorOrFailedCommandNameType = std::string

Type of stateless validation error or command name, which failed validation

TransactionHashType

using shared_model::interface::TransactionResponse::TransactionHashType = interface::types::HashType

Type of transaction hash.

Member Enumeration Documentation

PrioritiesComparisonResult

enum shared_model::interface::TransactionResponse::PrioritiesComparisonResult

strong

Enumeration for holding result of priorities comparison

Enumerator
kLess
kEqual
kGreater

Member Function Documentation

comparePriorities()

TransactionResponse::PrioritiesComparisonResult TransactionResponse::comparePriorities ( const ModelType &  other ) const

noexcept

Compare priorities of two transaction responses

Parameters

other

response

Returns

enumeration result of that comparison

errorCode()

virtual ErrorCodeType shared_model::interface::TransactionResponse::errorCode ( ) const

pure virtual

Returns

error code, with which the command failed

Implemented in shared_model::proto::TransactionResponse.

failedCommandIndex()

virtual FailedCommandIndexType shared_model::interface::TransactionResponse::failedCommandIndex ( ) const

pure virtual

Returns

index of failed command

Implemented in shared_model::proto::TransactionResponse.

get()

virtual const ResponseVariantType& shared_model::interface::TransactionResponse::get ( ) const

pure virtual

Returns

attached concrete tx response

Implemented in shared_model::proto::TransactionResponse.

operator==()

bool TransactionResponse::operator== ( const ModelType &  rhs ) const

override

priority()

virtual int shared_model::interface::TransactionResponse::priority ( ) const

protectedpure virtualnoexcept

Returns

priority of this transaction response; transaction response can only be replaced with one with higher priority

statelessErrorOrCommandName()

virtual const StatelessErrorOrFailedCommandNameType& shared_model::interface::TransactionResponse::statelessErrorOrCommandName ( ) const

pure virtual

Returns

name of the failed command, if present; empty string otherwise

Implemented in shared_model::proto::TransactionResponse.

toString()

std::string TransactionResponse::toString ( ) const

overridevirtual

Make string developer representation of object

Returns

string with internal state of object

Reimplemented from shared_model::interface::ModelPrimitive< TransactionResponse >.

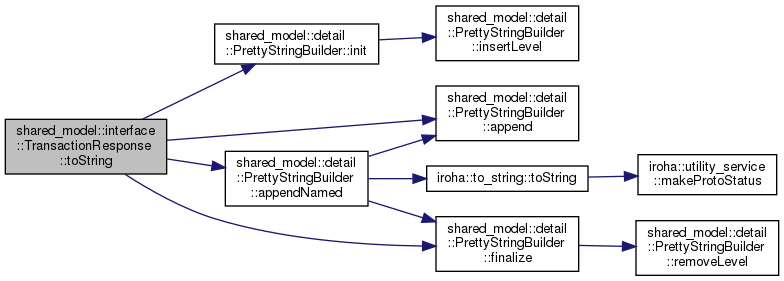

Here is the call graph for this function:

transactionHash()

virtual const TransactionHashType& shared_model::interface::TransactionResponse::transactionHash ( ) const

pure virtual

Returns

hash of corresponding transaction

Implemented in shared_model::proto::TransactionResponse.

---

The documentation for this class was generated from the following files:

• shared_model/interfaces/transaction_responses/tx_response.hpp
• shared_model/interfaces/transaction_responses/impl/tx_response.cpp
