iroha::network::PeerCommunicationService Class Reference

#include "peer_communication_service.hpp"

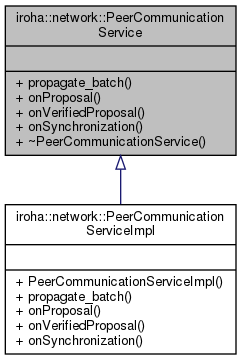

Inheritance diagram for iroha::network::PeerCommunicationService:

Collaboration diagram for iroha::network::PeerCommunicationService:

Public Member Functions
virtual void	propagate_batch (std::shared_ptr< shared_model::interface::TransactionBatch > batch) const =0
virtual rxcpp::observable< OrderingEvent >	onProposal () const =0
virtual rxcpp::observable< simulator::VerifiedProposalCreatorEvent >	onVerifiedProposal () const =0
virtual rxcpp::observable< synchronizer::SynchronizationEvent >	onSynchronization () const =0
virtual	~PeerCommunicationService ()=default

Detailed Description

Public API for notification about domain data

Constructor & Destructor Documentation

~PeerCommunicationService()

virtual iroha::network::PeerCommunicationService::~PeerCommunicationService ( )

virtualdefault

Member Function Documentation

onProposal()

virtual rxcpp::observable<OrderingEvent> iroha::network::PeerCommunicationService::onProposal ( ) const

pure virtual

Event is triggered when proposal arrives from network.

Returns

observable with Proposals. (List of Proposals)

Implemented in iroha::network::PeerCommunicationServiceImpl.

onSynchronization()

virtual rxcpp::observable<synchronizer::SynchronizationEvent> iroha::network::PeerCommunicationService::onSynchronization ( ) const

pure virtual

Event is triggered when commit block arrives.

Returns

observable with sequence of committed blocks. In common case observable<Block> will contain one element. But there are scenarios when consensus provide many blocks, e.g. on peer startup - peer will get all actual blocks. Also, it can provide no blocks at all, if commit was empty

Implemented in iroha::network::PeerCommunicationServiceImpl.

onVerifiedProposal()

virtual rxcpp::observable<simulator::VerifiedProposalCreatorEvent> iroha::network::PeerCommunicationService::onVerifiedProposal ( ) const

pure virtual

Event is triggered when verified proposal arrives

Returns

verified proposal and list of stateful validation errors

Implemented in iroha::network::PeerCommunicationServiceImpl.

propagate_batch()

virtual void iroha::network::PeerCommunicationService::propagate_batch ( std::shared_ptr< shared_model::interface::TransactionBatch >  batch ) const

pure virtual

Propagate batch to the network

Parameters

batch

- batch for propagation

Implemented in iroha::network::PeerCommunicationServiceImpl.

---

The documentation for this class was generated from the following file:

• irohad/network/peer_communication_service.hpp
