iroha::consensus::yac Namespace Reference

Namespaces
	detail

Classes
class	BufferedCleanupStrategy
class	CleanupStrategy
class	ClusterOrdering
struct	CommitMessage
class	ConsensusOutcomeDelay
class	CryptoProviderImpl
struct	FutureMessage
class	HashGate
class	NetworkImpl
struct	OutcomeMessage
class	PbConverters
class	PeerOrdererImpl
struct	RejectMessage
class	SupermajorityChecker
class	SupermajorityCheckerBft
	An implementation of BFT supermajority checker. More...
class	SupermajorityCheckerCft
	An implementation of CFT supermajority checker. More...
class	Timer
class	TimerImpl
struct	VoteMessage
class	Yac
class	YacBlockStorage
class	YacCryptoProvider
class	YacGate
class	YacGateImpl
class	YacHash
class	YacHashProvider
class	YacHashProviderImpl
class	YacInit
class	YacNetwork
class	YacNetworkNotifications
class	YacPeerOrderer
class	YacProposalStorage
class	YacVoteStorage

Typedefs
using	Answer = boost::variant< CommitMessage, RejectMessage, FutureMessage >
using	ProposalHash = std::string
using	BlockHash = std::string
using	PeersNumberType = size_t
	Type for number of peers in round. More...

Enumerations
enum	ConsensusOutcomeType { ConsensusOutcomeType::kCommit, ConsensusOutcomeType::kFuture, ConsensusOutcomeType::kNothing, ConsensusOutcomeType::kReject }
enum	ConsistencyModel { ConsistencyModel::kBft, ConsistencyModel::kCft }
enum	ProposalState { ProposalState::kNotSentNotProcessed, ProposalState::kSentNotProcessed, ProposalState::kSentProcessed }

Functions
std::unique_ptr< SupermajorityChecker >	getSupermajorityChecker (ConsistencyModel c)
	Get a SupermajorityChecker for the given consistency model. More...
bool	checkKfPlus1Supermajority (PeersNumberType number, PeersNumberType all, unsigned int k)
bool	checkKfPlus1Tolerance (PeersNumberType number, PeersNumberType all, unsigned int k)
template<typename T , typename P >
void	removeMatching (std::vector< T > &target, const P &predicate)
template<typename CollectionType , typename ElementType >
bool	contains (const CollectionType &haystack, const ElementType &needle)
bool	sameKeys (const std::vector< VoteMessage > &votes)
boost::optional< Round >	getKey (const std::vector< VoteMessage > &votes)
boost::optional< YacHash >	getHash (const std::vector< VoteMessage > &votes)

Detailed Description

Copyright Soramitsu Co., Ltd. All Rights Reserved. SPDX-License-Identifier: Apache-2.0

Typedef Documentation

Answer

using iroha::consensus::yac::Answer = typedef boost::variant<CommitMessage, RejectMessage, FutureMessage>

Contains proof of supermajority for all purposes;

BlockHash

using iroha::consensus::yac::BlockHash = typedef std::string

PeersNumberType

using iroha::consensus::yac::PeersNumberType = typedef size_t

Type for number of peers in round.

ProposalHash

using iroha::consensus::yac::ProposalHash = typedef std::string

Enumeration Type Documentation

ConsensusOutcomeType

enum iroha::consensus::yac::ConsensusOutcomeType

strong

Enumerator
kCommit
kFuture	commit for current round
kNothing	future round event
kReject	peers voted for an empty hash

ConsistencyModel

enum iroha::consensus::yac::ConsistencyModel

strong

Enumerator
kBft	BFT consistency.
kCft	CFT consistency.

ProposalState

enum iroha::consensus::yac::ProposalState

strong

Proposal outcome states for multicast propagation strategy

Outcome is either CommitMessage, which guarantees that supermajority of votes for the proposal-block hashes is collected, or RejectMessage, which states that supermajority of votes for a block hash cannot be achieved

kNotSentNotProcessed - outcome was not propagated in the network AND it was not passed to pipeline. Initial state after receiving an outcome from storage. Outcome with votes is propagated to the network in this state.

kSentNotProcessed - outcome was propagated in the network AND it was not passed to pipeline. State can be set in two cases:

1. Outcome is received from the network. Some node has already achieved an outcome and has propagated it to the network, so the first state is skipped.
2. Outcome was propagated to the network Outcome is passed to pipeline in this state.

kSentProcessed - outcome was propagated in the network AND it was passed to pipeline. Set after passing proposal to pipeline. This state is final. Receiving a network message in this state results in direct propagation of outcome to message sender.

Enumerator
kNotSentNotProcessed
kSentNotProcessed
kSentProcessed

Function Documentation

checkKfPlus1Supermajority()

bool iroha::consensus::yac::checkKfPlus1Supermajority ( PeersNumberType  number, PeersNumberType  all, unsigned int  k  )

inline

A generic implementation of N = K * f + 1 model checkers. N is the amount of peers in the network, f is the number of tolerated faulty peers, and K is a free parameter. Supermajority is achieved when at least N - f peers agree. For the networks of arbitrary peers amount Na the tolerated number of faulty peers is (Na - 1) % K. Check supermajority condition.

Parameters

number	- the number of peers agreed on the state
all	- the total number of peers in the network
k	- the free parameter of the model

Returns

whether supermajority is achieved by the agreed peers

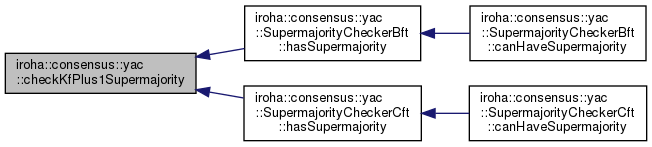

Here is the caller graph for this function:

checkKfPlus1Tolerance()

bool iroha::consensus::yac::checkKfPlus1Tolerance ( PeersNumberType  number, PeersNumberType  all, unsigned int  k  )

inline

Check tolerance condition.

Parameters

number	- the number of possibly faulty peers
all	- the total number of peers in the network
k	- the free parameter of the model

Returns

whether the given number of possibly faulty peers is tolerated by the network.

Here is the caller graph for this function:

contains()

template<typename CollectionType , typename ElementType >

bool iroha::consensus::yac::contains	(	const CollectionType &	haystack,
		const ElementType &	needle
	)

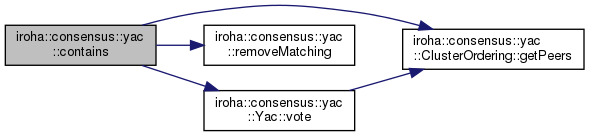

Here is the call graph for this function:

getHash()

boost::optional< YacHash > iroha::consensus::yac::getHash

(

const std::vector< VoteMessage > &

votes

)

Get common hash from collection

Parameters

votes

- collection with votes

Returns

hash, if collection elements have same hash, otherwise boost::none

Here is the call graph for this function:

Here is the caller graph for this function:

getKey()

boost::optional< Round > iroha::consensus::yac::getKey

(

const std::vector< VoteMessage > &

votes

)

Provide key common for whole collection

Parameters

votes

- collection with votes

Returns

vote round, if collection shared the same round, otherwise boost::none

Here is the call graph for this function:

getSupermajorityChecker()

std::unique_ptr< SupermajorityChecker > iroha::consensus::yac::getSupermajorityChecker

(

ConsistencyModel

c

)

Get a SupermajorityChecker for the given consistency model.

Here is the caller graph for this function:

removeMatching()

template<typename T , typename P >

void iroha::consensus::yac::removeMatching	(	std::vector< T > &	target,
		const P &	predicate
	)

Here is the caller graph for this function:

sameKeys()

bool iroha::consensus::yac::sameKeys

(

const std::vector< VoteMessage > &

votes

)

Check that all votes in collection have the same key

Parameters

votes

- collection of votes

Returns

true, if rounds of those votes are the same

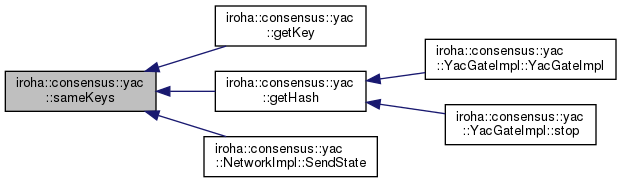

Here is the caller graph for this function:
